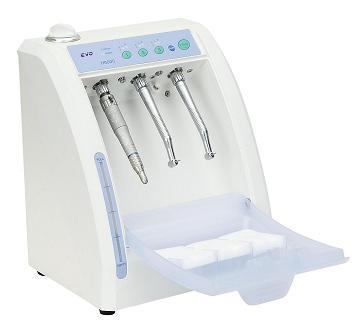

| HC1000 |
|
| Description |
 ·This machine can clean and oil the parallel shank or bendinghandpiece accurately and easily at any time£®
·It have the character of high security£¬easily operating£¬easilycommandeering£¬and any person can operate it£®
·Three dental handpieces can be oiled and cleaned at the sametime£®
·Swing pinion of machine can effectively clean and oil the dentalhandpiece from different angles£®
·Having completed the procedure of the cleaning and oiling£¬theremained oil can be cleared by pressing the air key£®
·Different handpieces can be oiled by choosing the short mode¡£thelong mode£¬and the longer mode£®
·Oil mist filtration cotton can prevent the least diffusing of the oil mist£®
Types
HC1000 A ---(high speed x 2 + low speed x 1)
HC1000 B ---(high speed x 1 + low speed x 2)
Parameters
| Voltage Rating |
AC220V, 50Hz AC110V, 60Hz |
| Air Pressure |
0.35¡«O.60Mpa (3.5¡«6.Okgf/cm2) (50¡«80ps) |
| Can Volume |
350mL |
| Overall Dimension |
285mm×355mm×275mm |
| Net Weigh |
7.5 kg |
| Mode |
Style of handpiece |
Time of cleaning and oiling |
Time of cleaning |
| Short Mode |
Air-compressed turbo handpiece
Handpiece using of NAKANISHI
NM series gear end
Handpiece using of NAKANISHI SGM series gear end
|
Almost 35 Seconds |
Almost 60 Seconds |
| Long Mode |
Bending handpiece |
Almost 45 Seconds |
Almost 80 Seconds |
| Long Mode |
handpiece is alien to
the short mode and long mode |
Almost 50 Seconds |
Almost 90 Seconds |
|
|
